JM-1 wiring

Thanks heaps guys! Wired it up as above and (I believe) it works! At least, the tone knobs do tone stuff and the 5-way does switch stuff :)

Still needs some finishing touches but very happy that it's playable.

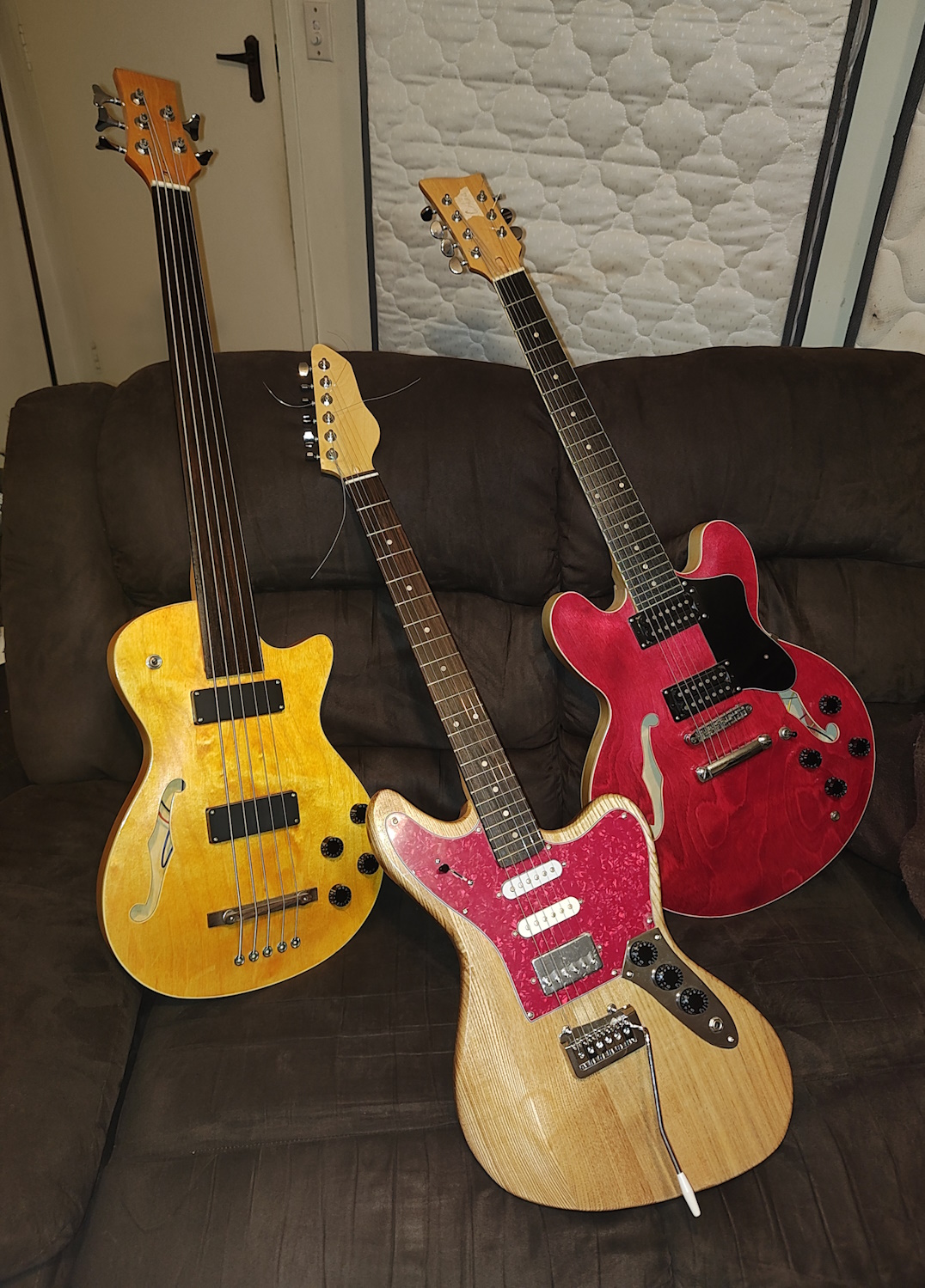

Hope you don't mind some gratuitous celebration shots.

Attachment 45235 Attachment 45237 Attachment 45236

Quote:

---

Originally Posted by CaseyBoller

The pickups are pre wired (thankfully) so just need to connect up the 4-wire ribbon from the vol/tone pots. I haven't tried yet because I'm scared of letting out the magic smoke....

---

It's something you don't need to worry about too much. I think the magic goes in gradually as you work on the guitar. As to the smoke, the electronics are VERY low current. If you get something wrong it may buzz or not work but nothing is going to burn ;-)

Quote:

---

Hope this made some sense! I think I'll try it in that configuration and see what happens tonight.

---

It makes sense. If it works, great! (Please let us know). If it doesn't, let us know what it's doing, and we'll go from there ;-)

I don't think that anyone has asked dumber questions here than I have. I have always gotten a useful answer.

Looks like I posted without seeing your last post. Nice looking collection. The new one looks good and right at home. Glad it's all working!
