JM-1 By Nitroburner1000

Lovely looking colour there, Nitro. I can't count how many silly finish damage incidents I've made, despite knowing not to do exactly what I actually do, so I sympathise fully.

Wow, just caught up on how things have progressed and impressed with how professional that Candy Apple finish looks.

Hopefully no more dramas as you enter the home straight.

Cheers, Waz

Quote:

---

Originally Posted by Simon Barden

Lovely looking colour there, Nitro. I can't count how many silly finish damage incidents I've made, despite knowing not to do exactly what I actually do, so I sympathise fully.

---

Really appreciate your sympathy mate, glad I'm not alone. Ta for the kudos

Quote:

---

Originally Posted by wazkelly

Wow, just caught up on how things have progressed and impressed with how professional that Candy Apple finish looks.

Hopefully no more dramas as you enter the home straight.

Cheers, Waz

---

Thanks heaps mate, I hope so too. All I've got left is the logo so fingers crossed.

Pm me if you'd like some help

Quote:

---

Originally Posted by Sonic Mountain

Pm me if you'd like some help

---

I think i will have to mate. Having problems with my art program, ta.

Quote:

---

Originally Posted by Sonic Mountain

Pm me if you'd like some help

---

Hi Phil heres a pic of the logo space.

Attachment 25636

For everyone else Sonic is helping me with my logo, yay.

So while i was waiting for my logo i decided to string up the jaguar and check for straightness and intonation. When i fitted the bridge i noticed it was very sloppy and low so i used 2 washers to heighten it. Intonation was not good. research time....

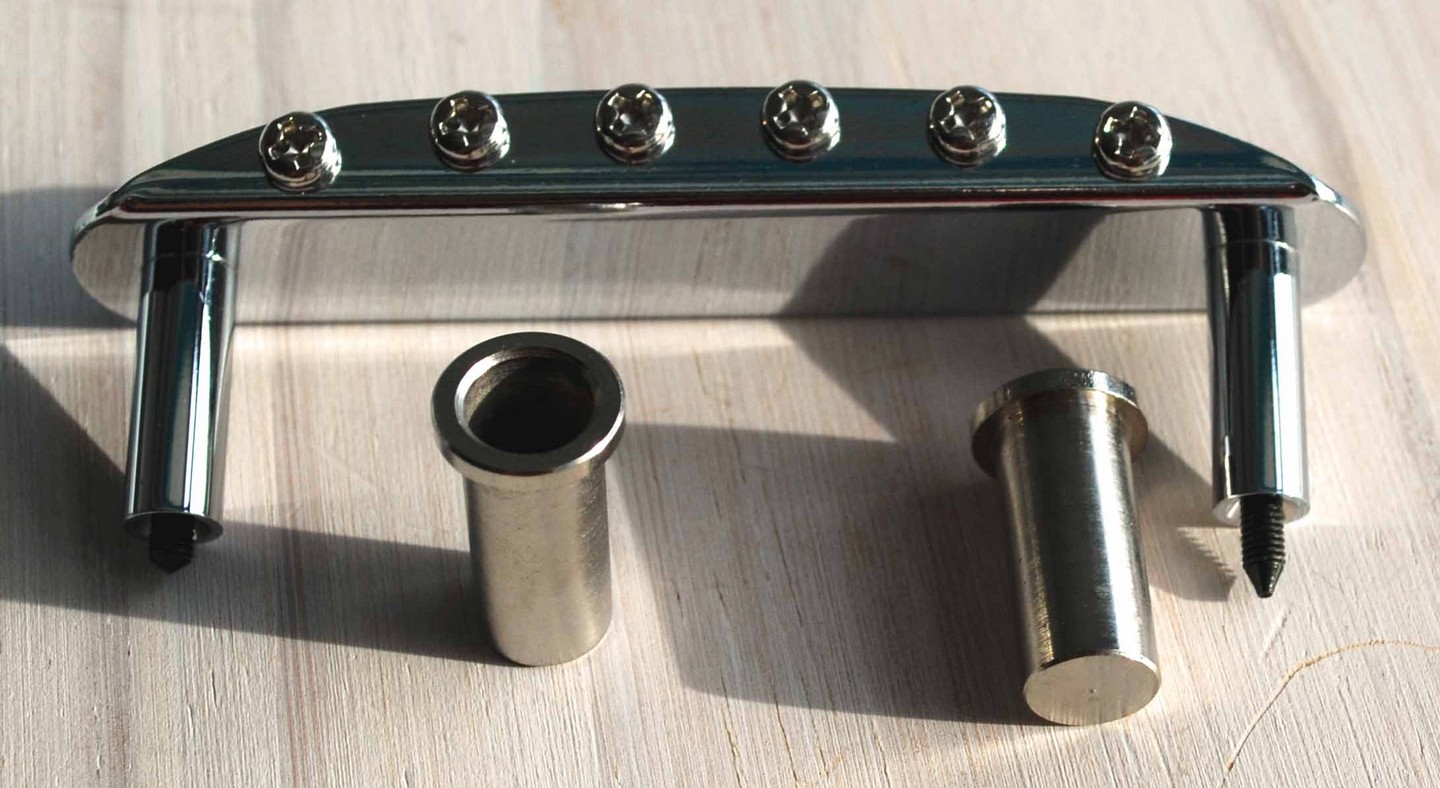

The jaguar has a floating bridge, the bridge has 2 pivots which you extend with an allen key. DUH... Now it floats and pivots nicely. If you want a non floating bridge just use a nylon or plastic sleeve made from tubing.
just posted this for newbies like me wanting to do a jaguar kit. cheers.

Attachment 25642 Attachment 25643

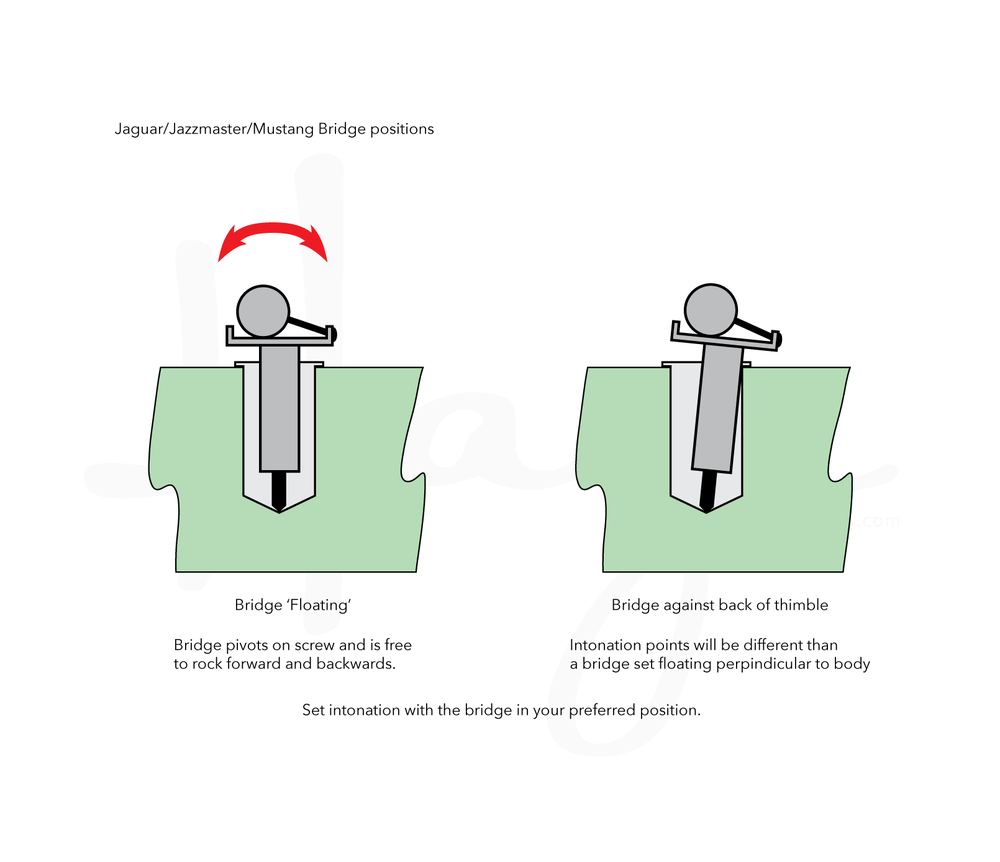

If you have the bridge set as in the second picture, so that it's resting against the side of the hole, then when setting the intonation, you are also adjusting the string height slightly. And if you adjust the bridge for string height, then you affect the intonation slightly.

Far better to have the bridge posts sitting upright, even if you do fit some plastic tube around the posts to keep them upright but not floating.

Quote:

---

Originally Posted by Simon Barden

If you have the bridge set as in the second picture, so that it's resting against the side of the hole, then when setting the intonation, you are also adjusting the string height slightly. And if you adjust the bridge for string height, then you affect the intonation slightly.

Far better to have the bridge posts sitting upright, even if you do fit some plastic tube around the posts to keep them upright but not floating.

---

Thanks Simon, appreciate the advice.
