Truss rods

Hi folks. I am wondering if anyone knows - are truss rods in PBG kit necks single or double?

My understanding is they are double action, which is a single truss rod that can work both ways.

Thanks Fretworn. I didn't want to break it!

Yep - they should all be doubles.

Do you know if they use welded or non-welded adjustment nuts?

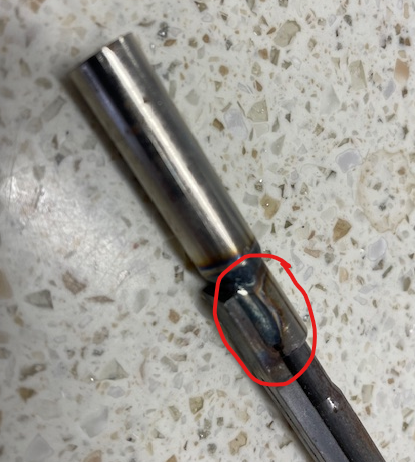

I'm not sure, but this is what they look like! This is from a bass neck.

Attachment 45065

That certainly looks like a weld to me.

Also you really have to admire how far TD will go to help someone out. Pulling the truss rod out of a bass neck is definitely going above and beyond!

Quote:

---

Originally Posted by fender3x

Attachment 45065

That certainly looks like a weld to me.

Also you really have to admire how far TD will go to help someone out. Pulling the truss rod out of a bass neck is definitely going above and beyond!

---

Thanks fender3x. But, ERRR, to be honest, I had actually pulled it out a year ago. The neck was a reject with a very bad twist! But I did want to see how they worked. I run a guitar building "club" at the school where I work with a small group of students (we meet 1 lunchtime a week). It is a great way to model and show the action of the truss rod.

Way to combine work and pleasure. The twisted neck sucks, but nice to have it for pedagogical purposes...and maybe for a scratch build at some point.

Quote:

---

Originally Posted by Trevor Davies

I'm not sure, but this is what they look like! This is from a bass neck.

---

I am getting ready to thin my a PB neck just a bit. TD, if you still have this truss rod would it be possible to measure it's height? I have been doing my calculations with the dimensions of Stew Mac's normal size truss rods that are 11.1 mm... but the the one in your pick looks like a low profile truss rod that should be somewhere between 9-9.5mm. I'll still use the Stew Mac dimensions...but would be nice to know if there is a margin for error if I get a little aggressive ;-)
