sh-1 wiring diagram

hello guys, i just build a hss guitar and i'm need a wiring diagram!
the pickup configuration is hss 1 vol, 1 puss/pull tone and 5 way swich .. i neet to split the humbucker ..

i hope you can put some clearly picture of the wiring.. :confused:

thank you my friends..

you can see the progress below here on youtube ..

part 1 ..

https://www.youtube.com/watch?v=wevbt9rox0M

part 2 ...

https://www.youtube.com/watch?v=yN0VucfCehE

enjoy..

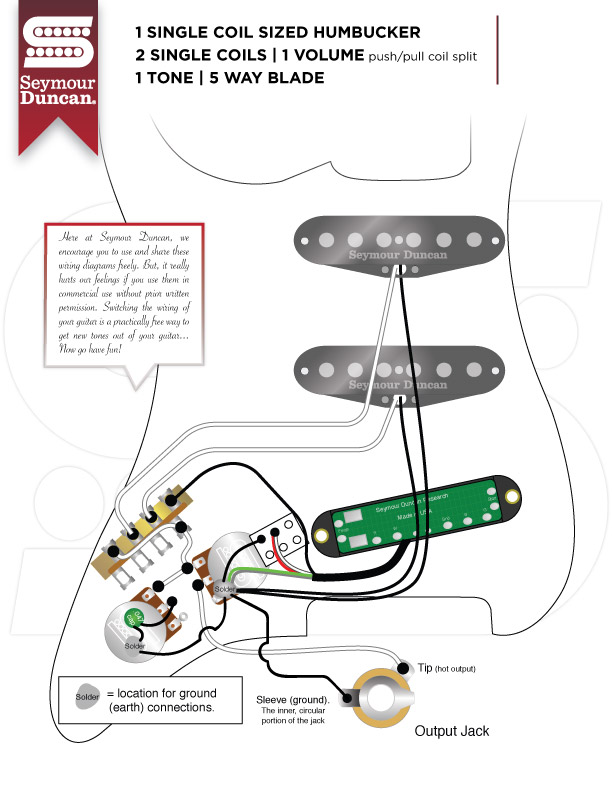

Just wire it as if it were 3 single coils like in this diagram, and wire your push/pull to split the bridge humbucker the same way it's connected to the series link (the joined wires on your pickup) in this diagram (just the series link and ground connection on the push/pull switch).

So, same layout as the SSS diagram above but with the series link and ground connection to the push/pull's switch. Make sense?

thank you very much, i will try it..

Attachment 13785

it's ok ?
i have a one 500k pot and one 250k push/pull pot..

Yes, that diagram will work for your layout. Which value pot you use for volume and tone will impact the sound, so you may need to try them one way and swap them around if the sound is too bright (500K volume) or dark (250K volume).

great...

thank you my friend..

hello guys.. some sound check .. enjoy :)

https://www.youtube.com/watch?v=dXEO...ature=youtu.be

great sound check Gabriel, very good playing mate

awesome Gabriel, just watched the last video, the axe is sounding great and your playing is very impressive you have your own style which I can pick some influences such as Santana, Dave Gilmour with a few others thrown in. I could only pick about 2 or 3 bum notes in probably 1200 odd notes played in the 10 odd minute vid well done. Great version of Hotel California solo !

thank you very much guy.. i'm glade to know that you guys love it..
