Help with wiring a JM-1 kit

is there anyone who can provide some help with wiring a JM-1?

If so, I'll forward a link to this thread to the customer who is having issues.

He's having problems working out the wiring from our wiring diagram, which does look a bit confusing, to my inexperienced eyes.

So, if you've wired a JM-1 or JMA-1 I'm sure you could help walk him through it.

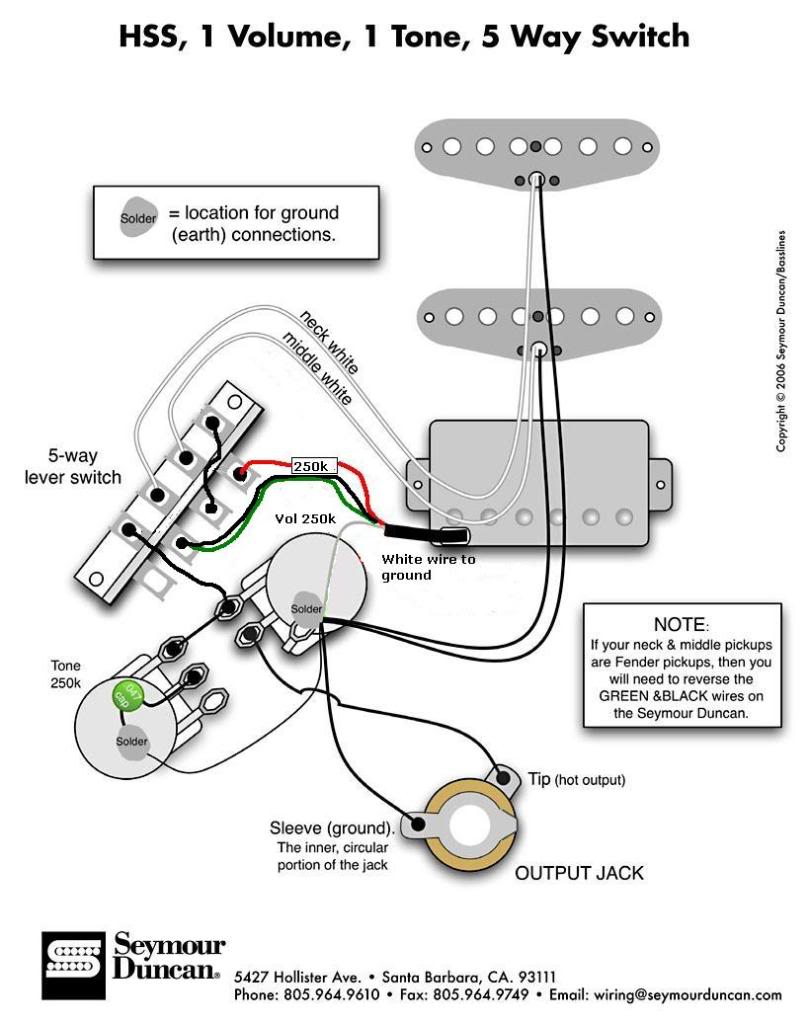

Haven't done this one but the jm1 diagram looks incomplete. Found this image that may get closer.
Attachment 9832

Adam, the PBG Diagram combined with this thread should help. The wire colours on these kits can change from batch to batch, so with the pre-wired stuff it's hard to give specific help without seeing pics from the actual kit.

Get him to post in the above linked thread if he needs further help so we can keep it all in one place.

Quote:

---

Originally Posted by WeirdBits

Adam, the PBG Diagram combined with this thread should help. The wire colours on these kits can change from batch to batch, so with the pre-wired stuff it's hard to give specific help without seeing pics from the actual kit.

Get him to post in the above linked thread if he needs further help so we can keep it all in one place.

---

Ahh, excellent, I thought I had seen this discussed before but couldn't find it.

This will solve his issue, but I might post some pics of the new coloured wiring so we have it in that thread.

Thanks again Weirdy, you are truly a National Treasure!

As there is already a thread for this issue, I will close this one down later tonight.
